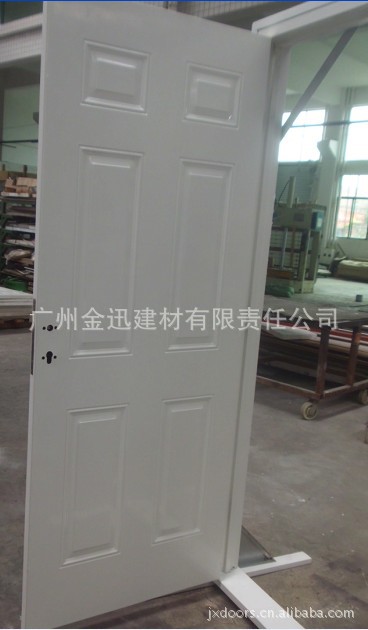

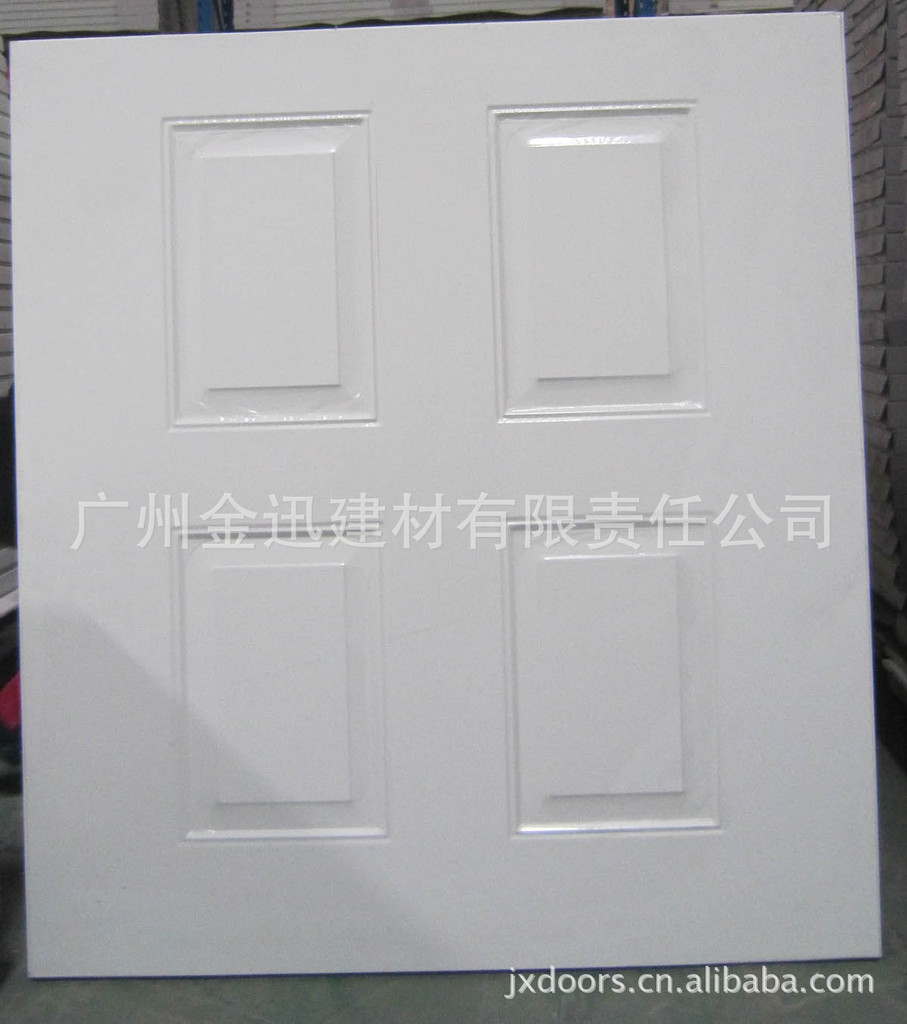

粉末喷涂钢制门 室内室外皆适用
Powder Coated Galvanized Steel door
Door specifications:
-- steel edge，fully metal door structure.
--0.6 mm gauge galvanized steel sheet for door leaf panel.
--1.2mm gauge galvanized steel sheet for frame .
--the door surface finished with powder coated .
--the frame is knock-down structure, 6 inches(152mm).
--the door insulated with polystyrene foam core.
-- the door comes with 3 stainless steel hinges, 1 lock & handle.
--door and frame packed separately .
--loading about 650 sets per 40’ HQ container.
-- we have the ISO9001:2008 and SONCAP, PC certificates.
--standard door size 810,910,710*1980*45mm.
Customize size and color available.

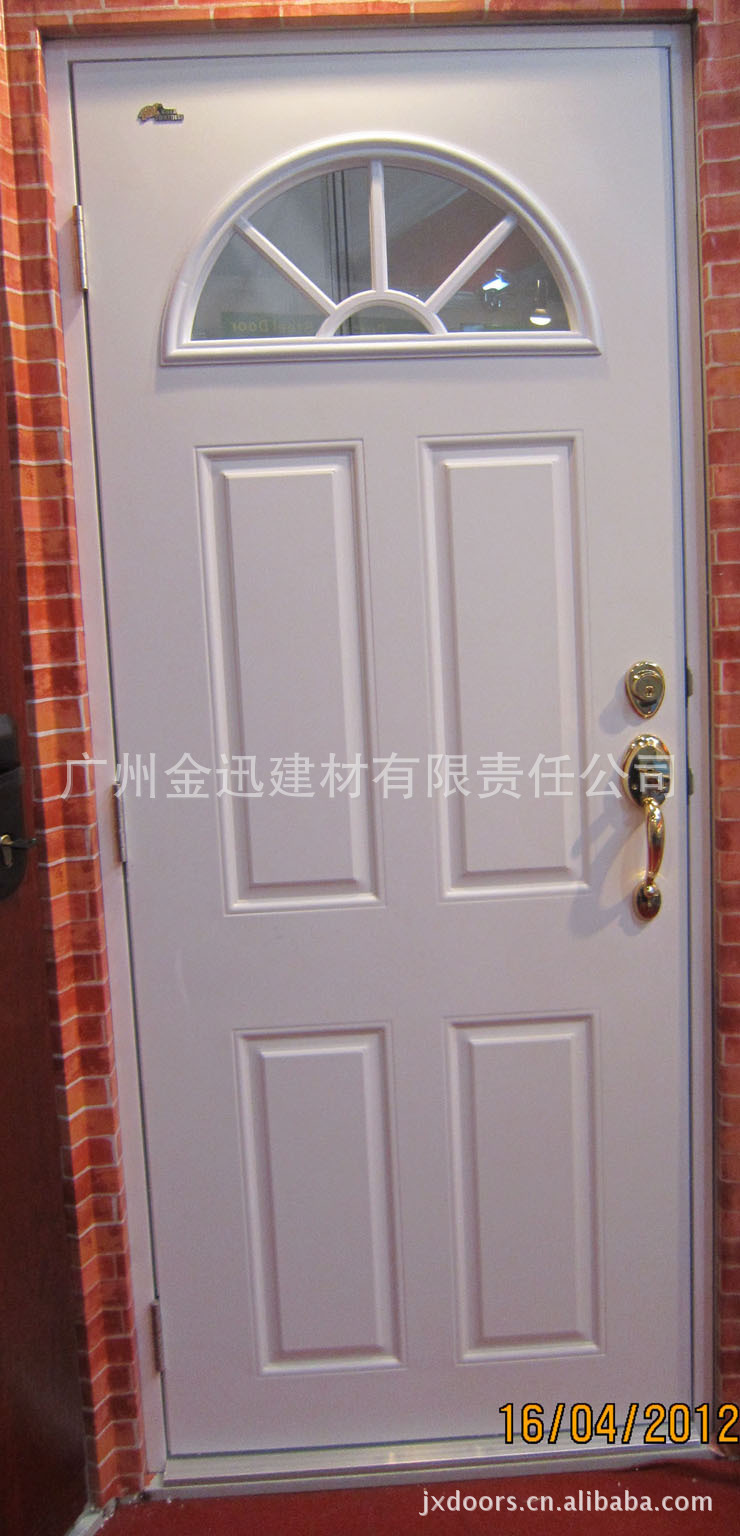

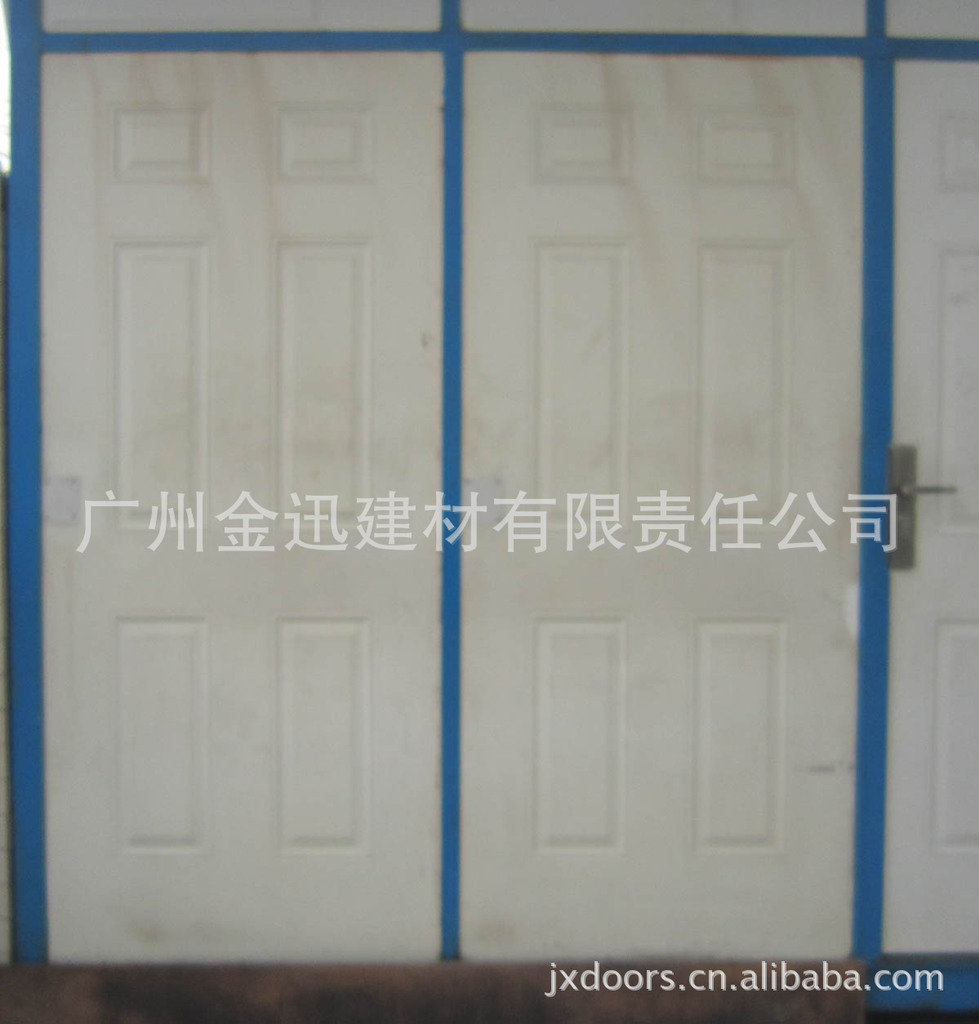

Single leaf door , double leaves door, glass vision door available.
We are door factory in Guangzhou city of China, just 20 minutes from the Baiyun Airport .
Jinxun with more than 10 years manufacturing and export experience.
All the products for exporting .
We can also arrange shipping，documents and other building material sourcing services.
Other products: American steel door, steel frame, Israel security door, entry glass door, steel wood edge door.
e your inquiries and orders!
Contact : sally zhou
Tel: 0086- 134 5027 9765
QQ : 543469033

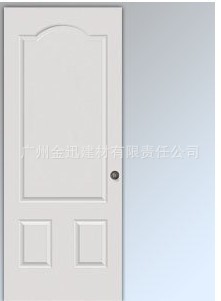

以色列结构金属室内门（Israel style metallic Door）
Standard Sizes: 630, 710, 810, 860, 910*2050*44MM.以色列标准尺寸。

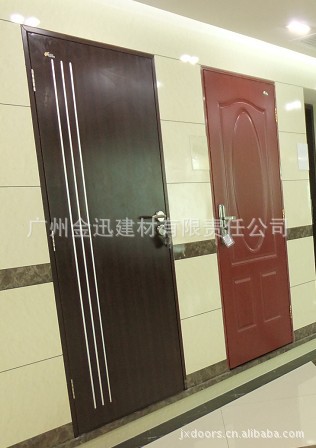

Designs: 6 panels, 4 panels, 3 panels, 3 Lines with Aluminum insert门扇款式：6格，2格，铝合金线条。
Material: Hot Dipped Galvanized Steel.材料：热镀锌。
Galvanizing 15-20 micron.镀锌层厚度：15到20微米。
Surface Finishing:金属门表面处理

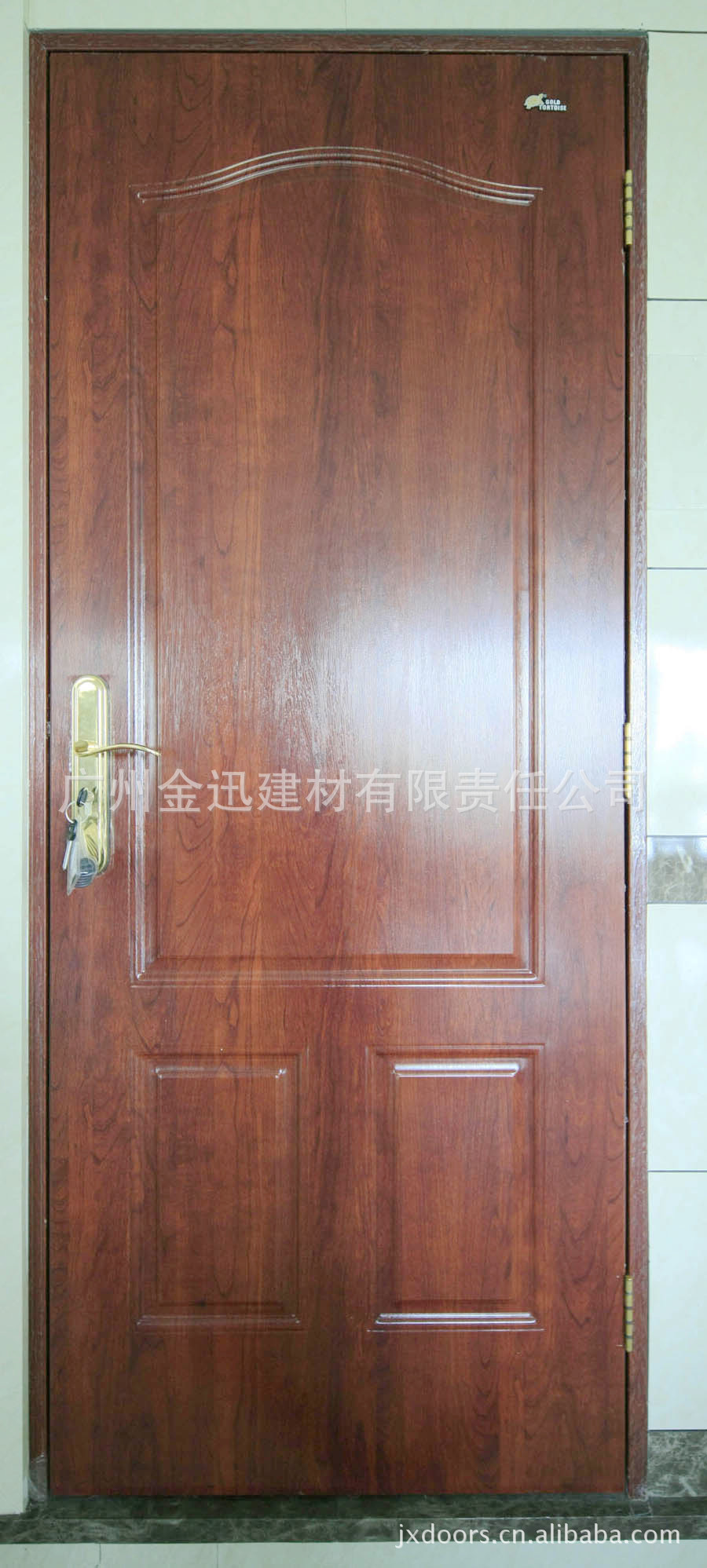

1. PVC Veneer Coating 0.02m"m. PVC覆膜。
2. Powder Coating 20 Micron.或喷涂处理。
Structure:金属门结构
1. Polyurethane Foam Injection Foam. PU发泡材料填充。
2. Pine Wood Edge, Wood Stiles Sizes With Up 30mm, Side 30mm, Bottom 50 to 100mm.
松木封边，底部木方50MM或100MM。
Lock Hole & Hinges Hole Pre-cut Available.开好锁孔和合页孔。
Fully Carton Packing, 770 PCS/40HQ.纸箱包装，770扇一个高柜。
Services
---all of our products are for exporting use , we know well of the exporting procedure and we can arrange the shipping and documents for you .所有产品全部出口，我们可以操作所有出口流程及单证服务。
---we locate in Guangzhou city , about 20 min. from the BAIYUN airport and 40 min. from the CANTON FAIR exhibition hall, free pick-up .我们工厂位于广州市，距广州白云机场仅20分钟车程。可以免费安排酒店预订和机场接待。
products certificate：产品证书：SONCAP,CE, ISO9001:2008。
E YOUR INQUIRIES AND ORDERS!
诚招国外代理商，期待与您的合作。
联系人：周小姐
手机：134 5027 9765
QQ：543469033
All double drilled { 39 1/2" & 45" } on Center and hinge prep 6 1/2 , 37 1/2 & 68 1/2" from the top of the door ,4" hinges,
30" x 79" x 1 3/4 6 panel 23/8 back set double drilled
36" x 79" x 1 3/4 6 panel 2 3/4 back set double drilled
34" x 79" x 1 3/4 6 panel 2 3/4 back set double drilled
32" x 79" x 1 3/4 6 panel 2 3/4 back set double drilled
The doors can be made to 1/4" under size on Width .
Pallet Loading.Total 770 Doors Standard 40 HC Container
